詳細情報 |
|||
| 製品名: | 太陽光発電浄水器 | 容量: | カスタマイズされた |
|---|---|---|---|
| プロセス: | 前処理、RO装置 | 要件: | カスタマイズされた |
| 材料: | ステンレス鋼、UPVC | 水源: | 地下水道水 |
| 水タンク: | 原水水漕、中間タンク、純粋な水漕 | フィルターハウジング: | FRPのステンレス鋼 |
| ポンプ: | Grundfos、CNP | ||
製品の説明

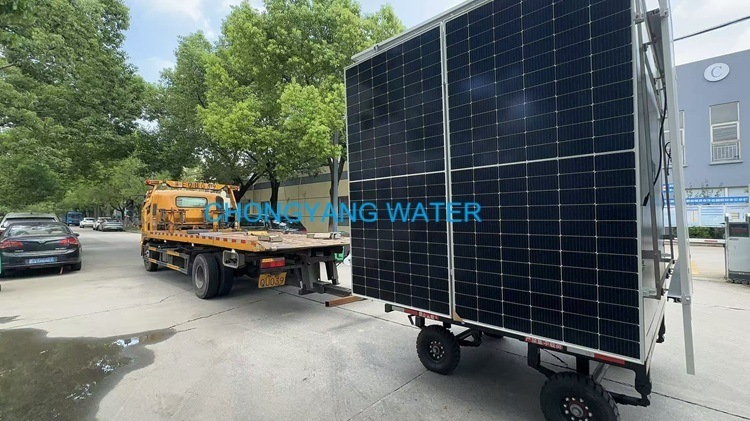

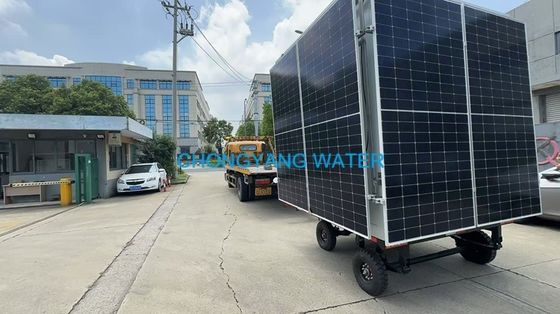

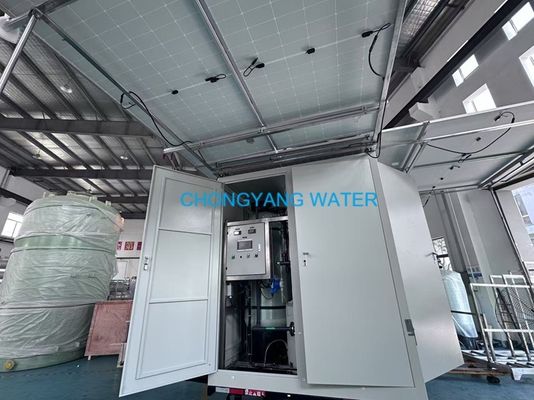

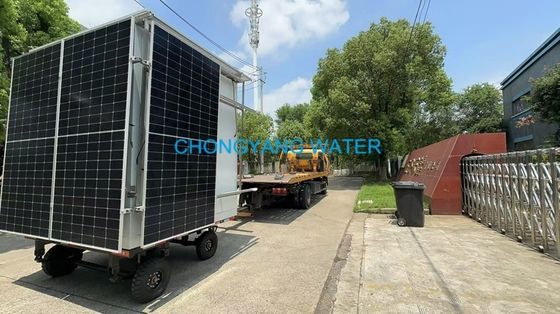

Description: Containerized Solar PV RO System
1. What it is:
A Containerized Solar PV RO System is a complete, self-contained water treatment plant built inside a standard shipping container. It uses solar energy to turn seawater or brackish (salty) water into clean, safe drinking water.
2. What it does (Its Purpose):
Its main job is to provide a large, reliable supply of clean water for communities, military bases, resorts, or industrial sites that are off the electrical grid or in remote coastal areas. It is a "plug-and-play" solution that can be transported anywhere in the world.
3. How it works (The Process):
Basis Parameter
-
Solar Power Generation: Solar panels are installed on the container's roof or on the ground nearby. They capture sunlight and convert it into electricity.
-
Power Management & Storage: A solar charge controller manages the power. The electricity is stored in a large bank of batteries inside the container, ensuring the system can run 24/7, day and night. An inverter converts the battery power to run the system's pumps and controls.
-
Water Pre-Treatment: Raw water from the sea or a well is pumped into the container. It first passes through pre-filters (a sediment filter and carbon filter) to remove sand, dirt, and other large particles.
-
Reverse Osmosis (RO): A high-pressure feed pump pushes the pre-treated water through the RO membranes. These membranes have extremely tiny pores that block salt, viruses, bacteria, and other harmful contaminants, allowing only clean water molecules to pass through.
-
Post-Treatment & Storage: The purified water is collected. A UV (Ultraviolet) sterilizer provides a final disinfection step to ensure all germs are destroyed. The clean water is then sent to a large external storage tank, ready for use.
| Parameter | Model 1000L | Model 1500L | Model 2000L | Model 3000L |
| Clean Water Output (per hour) | 1,000 Liters | 1,500 Liters | 2,000 Liters | 3,000 Liters |
| Solar Power (Solar Panels) | 5 - 6 kW | 7 - 9 kW | 10 - 12 kW | 14 - 17 kW |
| Battery Storage | 20 kWh | 30 kWh | 40 kWh | 60 kWh |
| Container Size | 20-foot | 20-foot | 20-foot | 40-foot |
| RO Membrane Type | 8-inch | 8-inch | 8-inch | 8-inch (multiple) |
| Water Recovery Rate | ~40-50% | ~40-50% | ~40-50% | ~40-50% |
| Pretreatment | Multi-media Filter, Carbon Filter, Antiscalant Dosing | Multi-media Filter, Carbon Filter, Antiscalant Dosing | Multi-media Filter, Carbon Filter, Antiscalant Dosing | Multi-media Filter, Carbon Filter, Antiscalant Dosing |
| Post-Treatment | UV Sterilizer, Remineralization (Optional) | UV Sterilizer, Remineralization (Optional) | UV Sterilizer, Remineralization (Optional) | UV Sterilizer, Remineralization (Optional) |
| Key Advantage | Compact, ideal for small communities | Balanced output and footprint | High output for larger demands | Maximum output for small towns or large facilities |
